3DPro® Cabinet

Equipment for Additive Manufacturing.

Over a century of experience in the various production processes at the service of additive manufacturing.

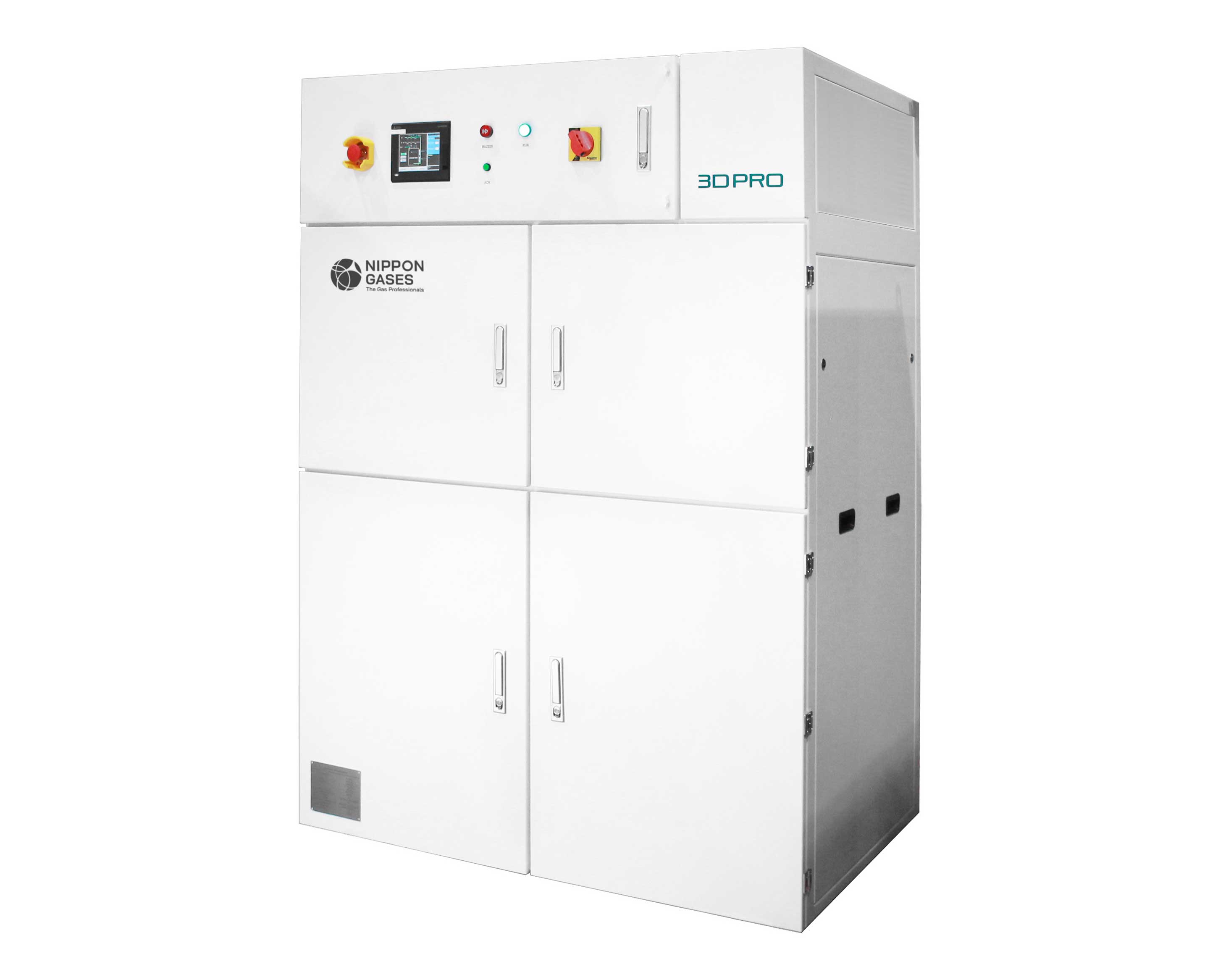

3D Cabinet

Nippon Gases has developed a chamber, the 3D Cabinet, to drastically reduce having products with defects due to oxygen and moisture presence. By eliminating these two parameters, the process can be stable and standard.

Thanks to this cabinet, the metal powder will be protected. The cabinet design guarantees inerting through a constant flow of inert gas, which is deactivated when the cabinet is open to withdraw metal dust and is reactivated when its door is closed. The cabinet has also heated support surfaces, bringing out moisture in the dust and eliminating it through the controlled inert gas flow.

am_powder-cabinet_2021

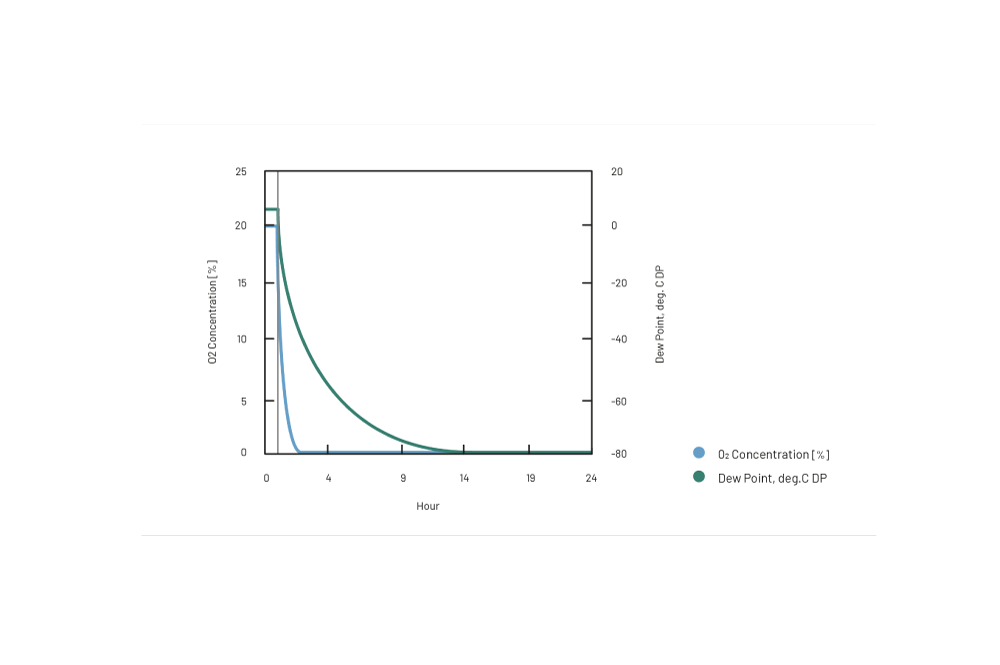

R&D

Thanks to these studies, it was also possible to understand that the presence of both pollutants inside the chamber is directly proportional to the number of defects in the product.

Our R&D centres carried out some studies showing how these two pollutants cause imperfections in the metallurgical structure of products manufactured with the 3D printing process. Thanks to these studies, it was also possible to understand that the presence of both pollutants inside the chamber is directly proportional to the number of defects in the product.

3D Pro Cabinet is a concrete solution to preserve metal powder from atmospheric contamination before the process, at the same time, it provides the necessary guarantees to obtain an effective result throughout the process.

wam_03

Metal Powder

Metal powder is usually delivered in inertised boxes, and once they are open, this element gets into contact with air.

Metal powder due to its characteristics, sphericity, and particle size, incorporate very easily oxygen and is hygroscopic.

wam_04

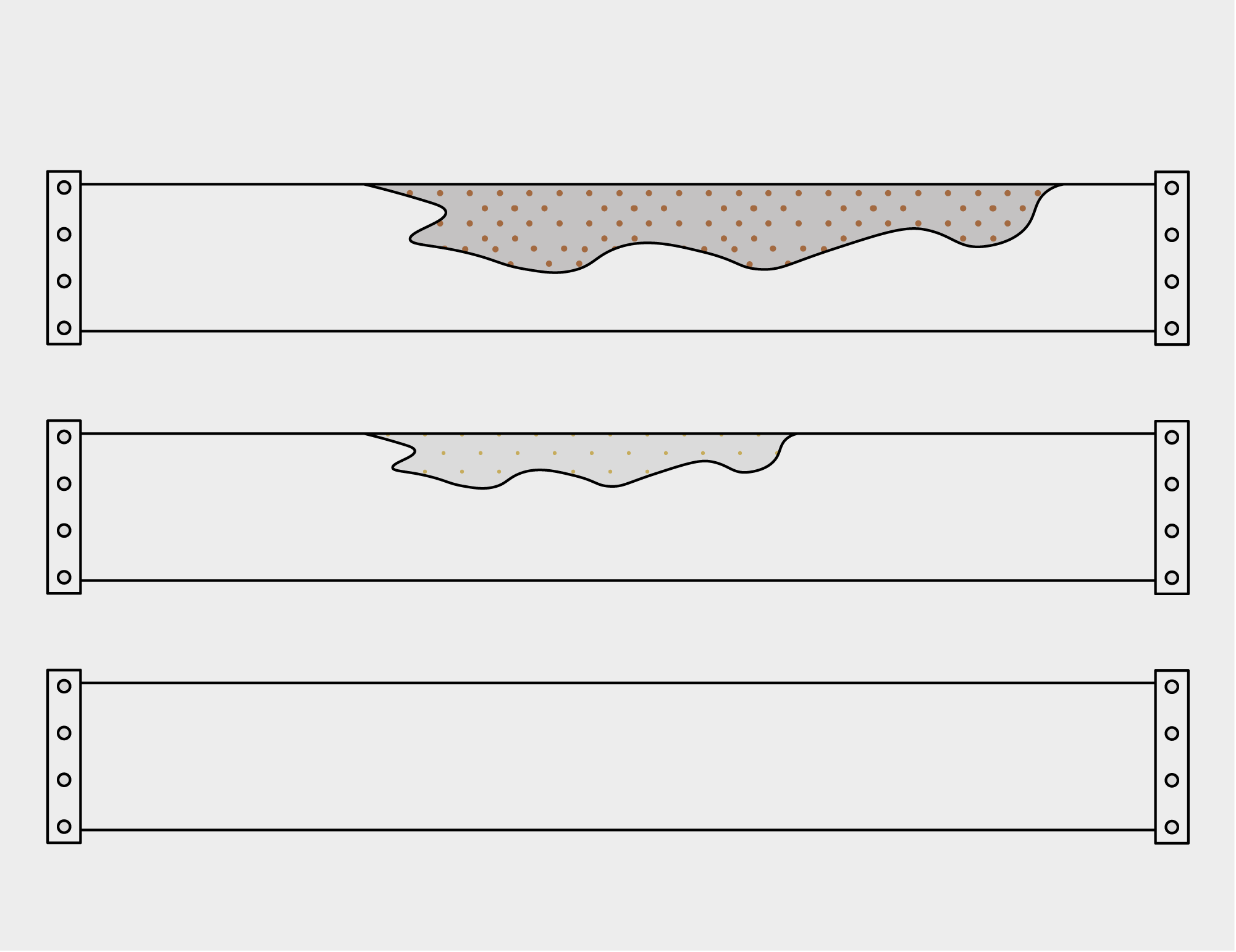

Metal AM process

The influence of gases in the metal additive manufacturing process.

3D printing processes can be of different types: PBF, EBM, DED, FDM, and the most recent one WAAM. There are also many different metals, often noble ones, that can also be processed, reason why this is an expensive process. All these different processes have a common characteristic, which is to protect the manufactured product from oxidisation during construction and heat treatment phases.
So, to preserve the metallurgical characteristics of the metal powder essential to obtain the finished product, it is important to use high-quality gas.

wam_01

We are here to help

At Nippon Sanso we are called "The Gas Professionals" for a reason, give us a call as we are always here to help with solutions.

Contact us

30

years of this technology

5

minutes to open the cabinet, a month to monetise the metal powder and close it

1

month to monetise the gas released

Oxygen and moisture,3D printing enemies

It is now common knowledge that oxygen is a pollutant that must be eliminated during the entire 3D printing processes and postprocess. While, it is less known that moisture also affects negatively these processes, sometimes it is even more serious than the presence of oxygen. In this process, oxygen is a pollutant, therefore it must be erased from the equation. Moisture too, has negative effects on this process, sometimes its presence is even more harmful than oxygen.
